Pedestrian System PCB Project (Dec. 2025)
Pedestrian System
PCB Project (Dec. 2025)
Pedestrian System (PCB)
Tuwaiq Academy Journey
Snaps

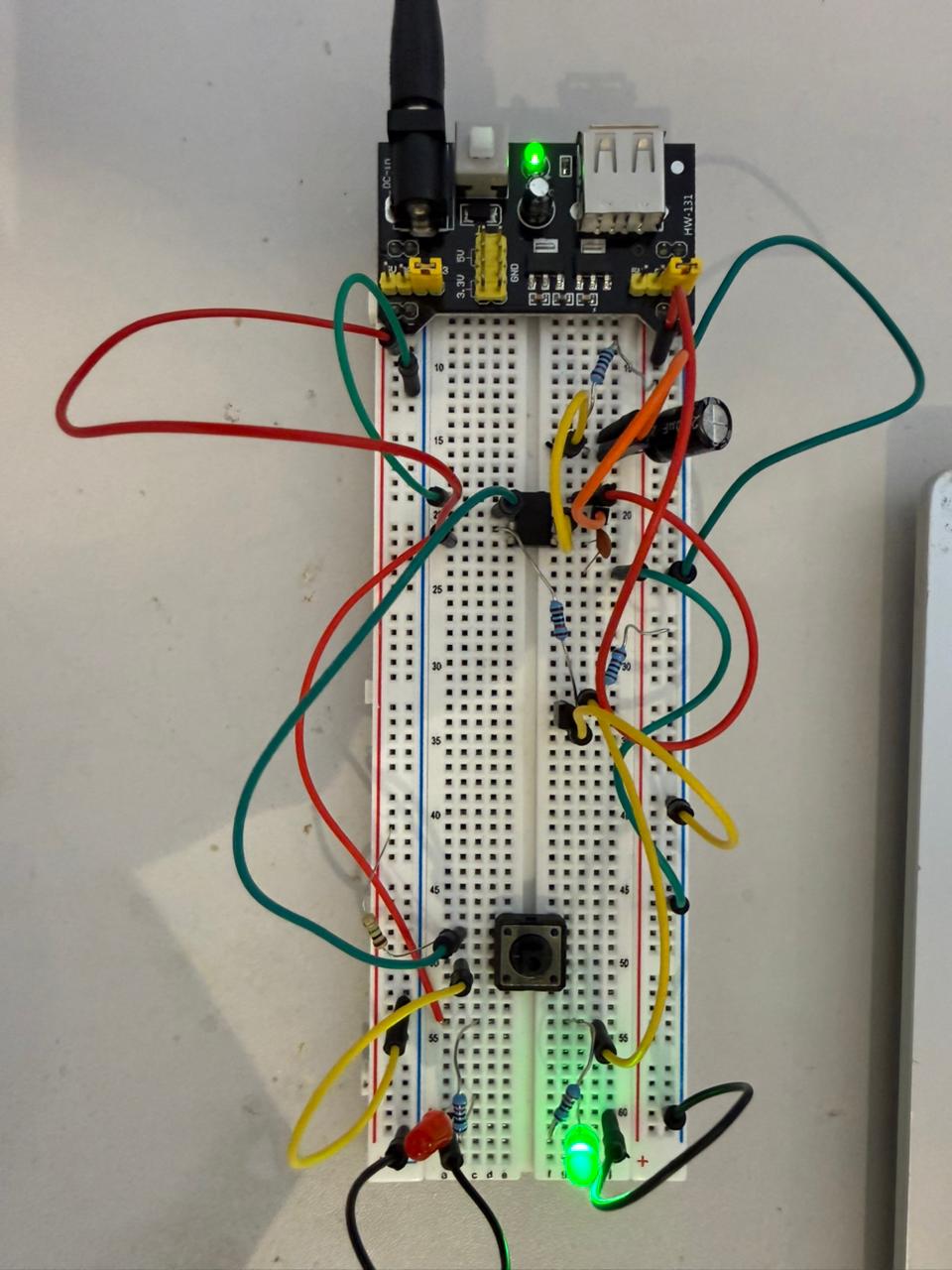

Prototyping
Initial PCB
Final Schematic

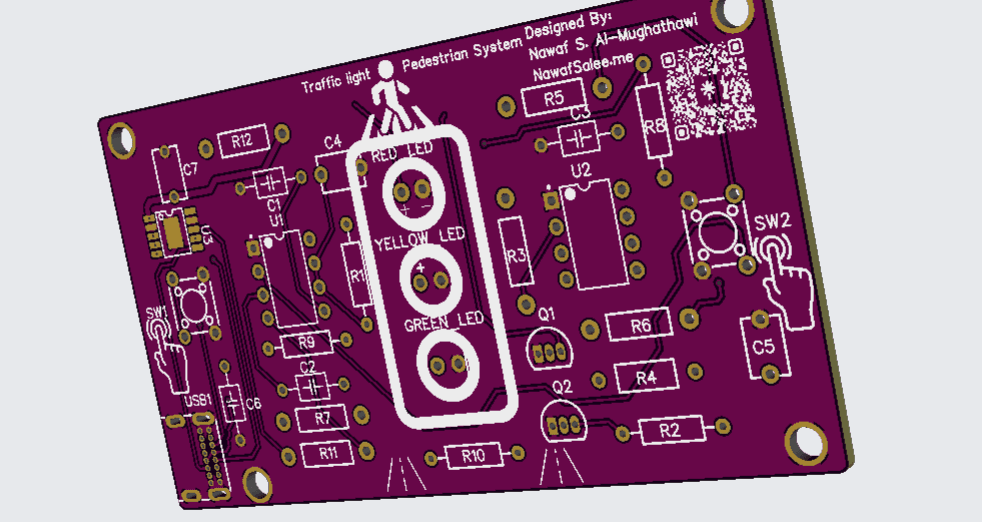

Top Layer Tracing (Routing)

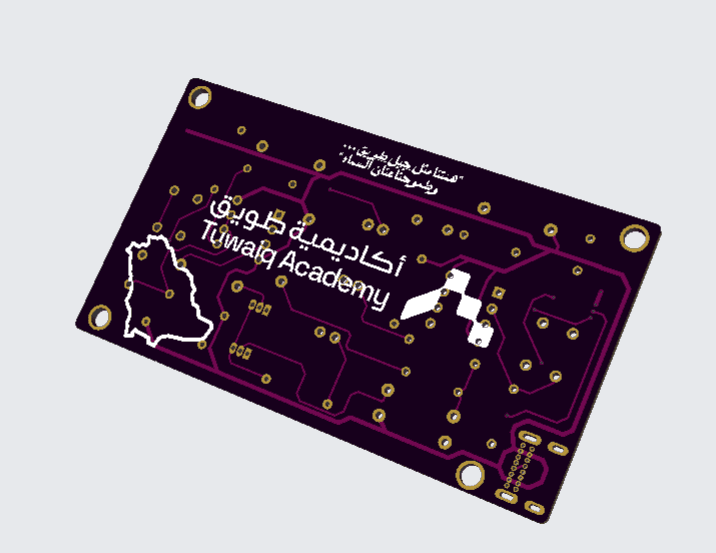

Bottom Layer Tracing (Routing)

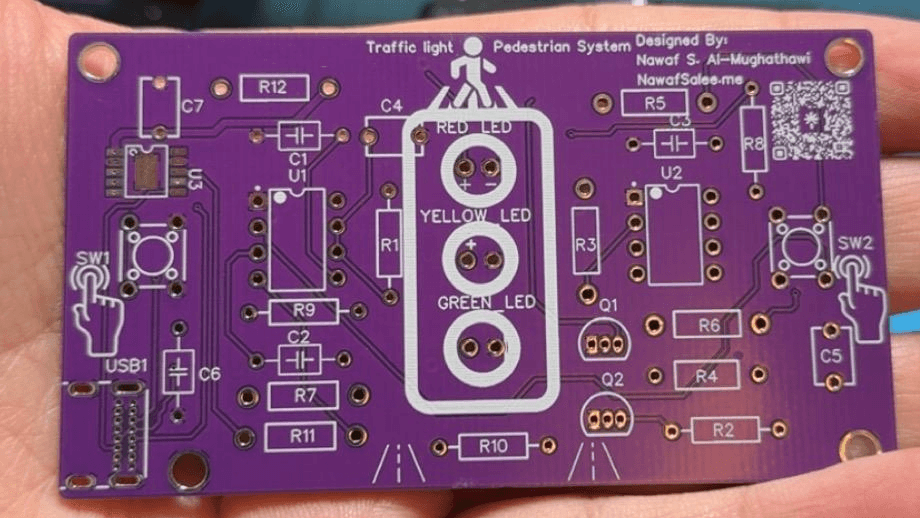

Final PCB (Pre Assembly)

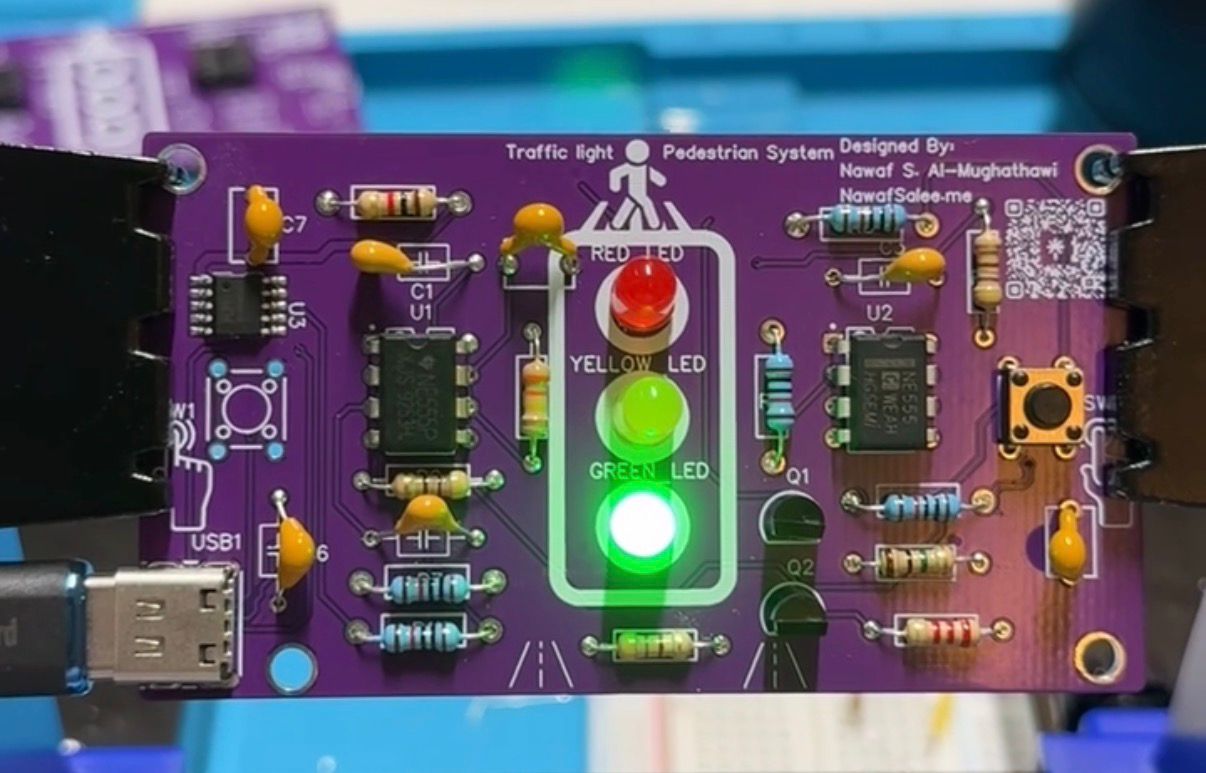

Final PCB (After Assembly) - In normal operation mode
One of the buttons was pushed

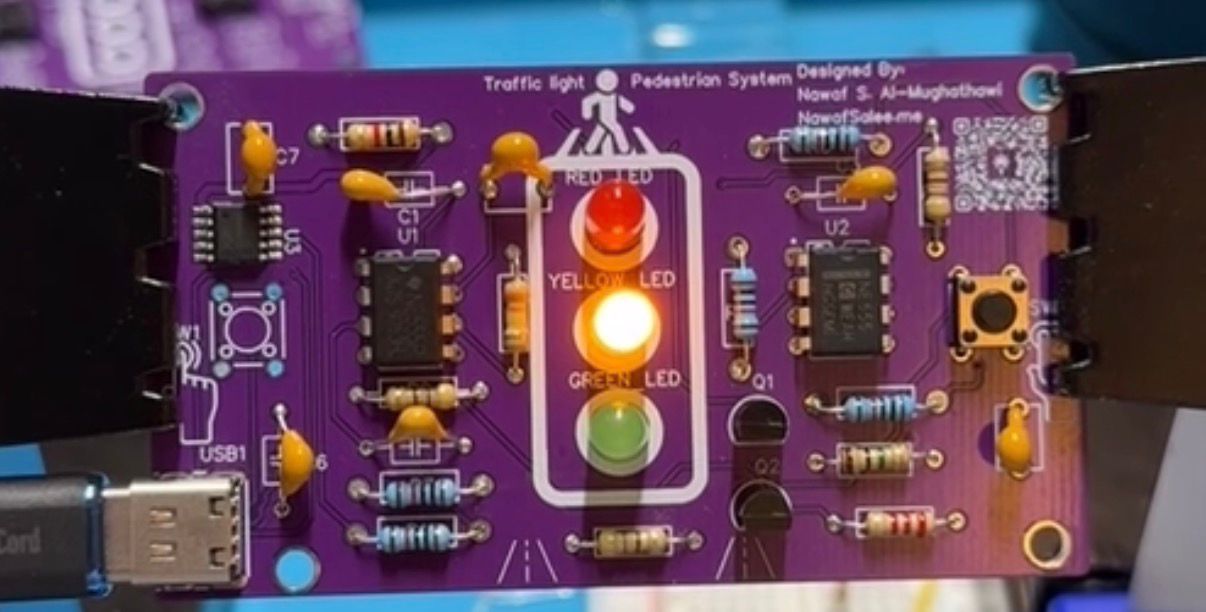

3s later …

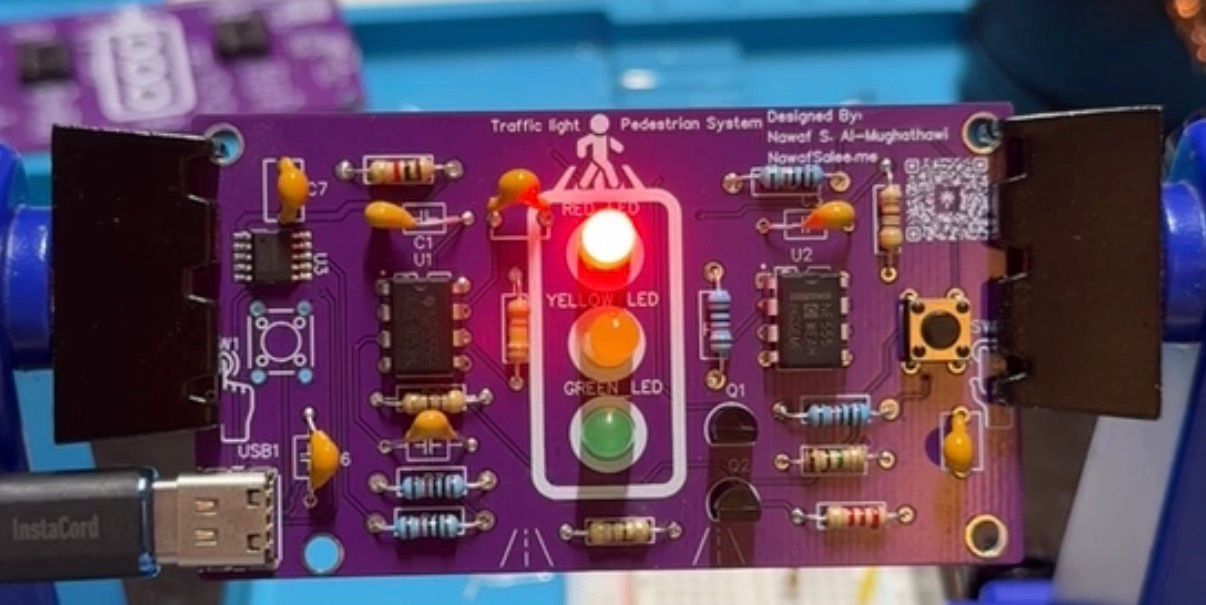

10s later … (Back to normal)
Overview
This project was part of graduation of Tuwaiq's Academy bootcamp of Design and Manufacturing of PCBs. It was mandatory to design a circuit electrically (without the use of Microcontroller like ESP32)using the following components:
555 Timers.
Transistors
LEDs.
Resistors.
Capacitors.
Type-C PORT.
PowerDelivery (PD) Integrated Chip (IC).
Push buttons.
It was challenging to get an idea to perform within a week that it don't look basic, due to my ability to perform the perfect and applicable idea. So I have came up with a system that I've seen a lot in Riyadh which is the Pedestrian System with the traffic lights in some Riyadh roads. Where this system make the green lights for vehicles almost all of the time, but when a pedestrian wants to across the road, he/her pushes a button to make the traffic light go yellow for 3s and then red for around 10-30s. And I have successfully implemented that idea by using simple components and designed a PCB, assembled it, and solder it.
This project was part of graduation of Tuwaiq's Academy bootcamp of Design and Manufacturing of PCBs. It was mandatory to design a circuit electrically (without the use of a microcontroller like ESP32)using the following components:
555 Timers.
Transistors
LEDs.
Resistors.
Capacitors.
Type-C PORT.
PowerDelivery (PD) Integrated Chip (IC).
Push buttons.
It was challenging to get an idea to perform within a week that it don't look basic, due to my ability to perform the perfect and applicable ideas. So I have came up with a system that I've seen a lot in Riyadh, which is the Pedestrian System with the traffic lights in some Riyadh roads. Where this system makes the green lights for vehicles almost all of the time, but when a pedestrian wants to cross the road, he/her pushes a button to make the traffic light go yellow for 3s and then red for around 10-30s. And I have successfully implemented that idea by using simple components and designed a PCB, assembled it, and solder it.
Tuwaiq Academy, Bootcamp of PCB
